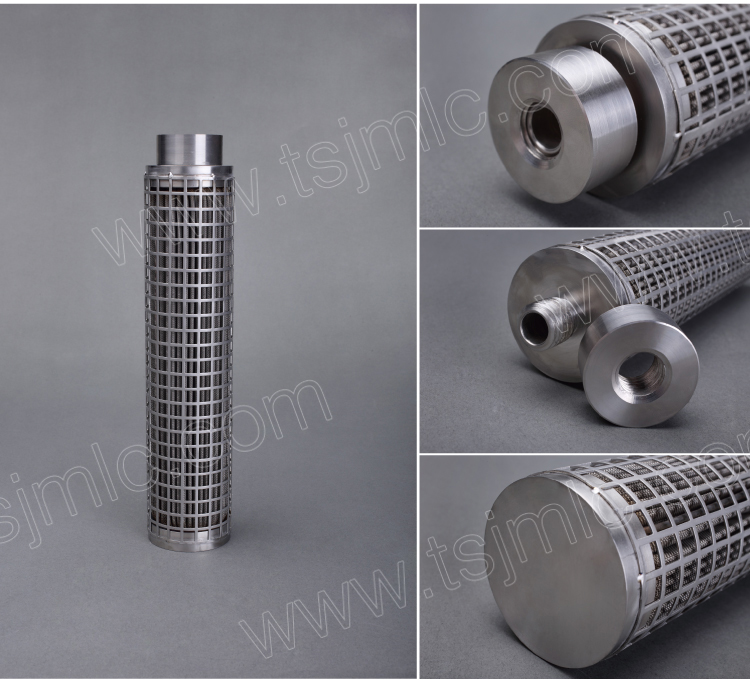

Washable filter cartridge High temperature and pressure mesh pleated Metal cartridge filter for steam filtration

FOB Reference Price:Get Latest Price
US $1-50 / Pieces | 1 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TS Filter
Model Number:
STP
Filter Media:
SUS316 mesh pleated
Length:
5''/10'' / 20'' / 30''/ 40''
Metal cartridge filter Micron:
1um/3um/5um/10um/20um/50um
Outer Dia.:
60mm/80mm
Porosity:
65%~85%
OEM:
Available
PH:
1~14
Max.differential:
0.60bar
Application:
Highly corrosive liquid and gas purfication
Max.Temperature:
300°C
Supply Ability
Supply Ability:
500000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Export standard package: 1pc filter cartridge/ 1 polybag/ 1 small carton; 12 or 20 pcs in one big carton
Port
Shanghai/Ningbo
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(day) 5 10 To be negotiated

welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.

 Washable filter cartridge High temperature and pressure  mesh pleated  Metal cartridge filter for steam filtration

Comprehensive presentation

Specifications

Features and benefits







Resistant high temperature and pressure

Extermely robsut construction,hig mechanical strength

ideal for aggressive solvents, viscous and hot solution

cartridges can be backwashable and cleaned by chemicl solvent, hot water, steam for the long life

Cartridges can resist to strong acid, alkaline



 STP

(SUS316L mesh pleated)



micron media: 1um,5um,10um,20um,50um,100um

Length:  10'' 20'' 30'' 40''

Porosity: 65%-85%

O-Ring(only for 222,226 DOE ends): Silicone, Nitrile, EPDM, Viton,Teflon

Filtration Efficiency: >= 90%

Out Diameter: 60mm/ 80mm

Operating Conditions





PH: 1 ~14

Max.temperature: 300℃(572F)

Max.differential: 0.60bar(87psi)

Typical water flow rate

(10 '')


Typical Applications











Steam filtration

Suitable for the extreme operating enviroments, steam filtration.

Pharmaceuticals: Prefiltraion and decarbonate filtration.

Food & Beverages: Viscous liquid with high temperature.

Fine Chemicals: Strong Acid and Alkaline filtration.

Water: Filtrate the O-zone containing water.
