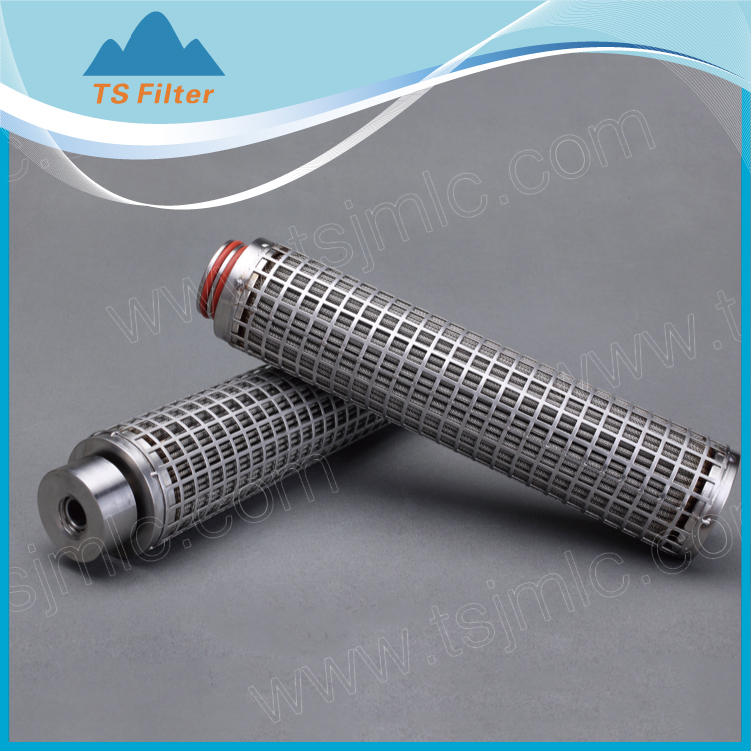

High Flow Rate Multi Stainless Steel Filter Cartridge

FOB Reference Price:Get Latest Price
US $0-1 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
TS Filter
5''/10'' / 20'' / 30''/ 40''
water treatment filter/steam filtration filter
Max operation temperature:
rewashable filter/high flow rate
Supply Ability
Supply Ability:
500000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Export standard package: 1pc filter cartridge/ 1 polybag/ 1 small carton; 12 or 20 pcs in one big carton
Lead Time :
3-15 days

welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.


Comprehensive presentation



STP :stainless steel mesh pleated and weld .resistant strong acid and alkali.it can be used for corrosive liquids liquid or gas

STP :highly -quality stainless steel powder sintered under high temperature .it can be used for liquid or gas under high temperature and high pressure





Resistant high temperature and pressure

Resistant strong acid and alkali

Small resistance in filtration process

Cartridges can resist to strong acid, alkaline




Filtration accuracy: 1-100 um

Length:  10-40 inch

Porosity: 65%-85%

Operating parameters



PH: 1  ~14

Max.temperature: 200℃

Max.differential: 0.60Mpa

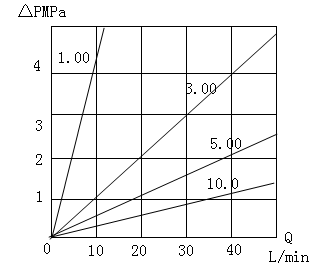

Typical water flow rate

(10 '')


Typical Applications






Steam filtration

Decarbonization of high viscosity liquid filtration

Removing impuriteis in Petrochemical industry

impurities Filtering

Strong polar solvent filtration

Highly corrosive liquid and gas purification

Liquid or gas in high temperature and pressure



STS 100-1umD60-60mmNIL- Cut Ends (Cylinder)10-10" S-silicone;     N-nitrile
STP300-3umD80-80mmAA- DOE ( With Gaskets)20-20" E-epdm ;       T-teflon (Encaptulated)
 500-5um BF-222/ Seal30-30" V-vition
 1000-10um CF-226/ Seal40-40"
 2000-20um YBP- 1" BSP Threaded05-5"
   HBP- 1/2" BSP ThreadedOther-XXHow to Order?- Example

STP; Micron:5um; Outer Dia.:60mm; Length:10";

Adapter:1"BSP; O-rings: Silicone

     Selection Code is: STP500D60YBP10S


Product range    Click below to choose your desired product categories


pleated filter cartridgeMetal filter cartridgeOther filter cartridge Filter Housing
PN filter cartridge seriesTitanium alloy sintered filterSmall Filter cartridgeGas Filter housings
PES filter cartridge seriespleated stainless steel filterZP filter/ single piece filterLiquid Filter housings
PTFE filter cartridge seriesstainless steel sintered filterHigh flow cartridgeBag Filter housings
PVDF filter cartridge series String Wound filterTitanium filter housing
PP filter cartridge series Melt-blown Filterfilter flask
GF filter cartridge series Activated carbon block filterPlate filter
  mesh filter cartridge
Filter MembranesFilter clothCapsule Filter
Nylon MembranePolyester fiber filter cloth
PES MembranePolyamide fiber filter cloth
PVDF MembranePolypropylene fiber filter cloth
CN-CA membraneFilter bag


About us



Our service

1,24-hour Response
We responds any request from our clients within 24 hours, saving your time and labor.

2,Supporting System
The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.

3,Free Training
We provide free training to all of our clients and distributors. The training will give you ample knowledge of our product, and make it easy for your work.

4,Free Storage Area
We are providing free storage area to our client,to achieve mix loading purposes.




1 How can we get the quotation of flter cartridges
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....

2What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.

3How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment
