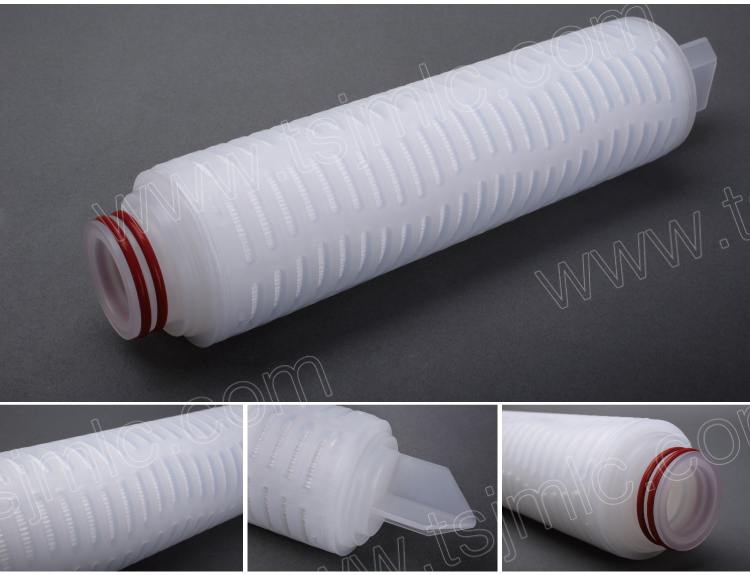

0.22um Micro cartridge filter PVDF liquid membrane for the biopharmaceutical industry

FOB Reference Price:Get Latest Price
US $10-40 / Pieces | 12 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
T.S.Filter
Model Number:
DHPV filter
inner core:
PP
filter media:
Hydrophilic PVDF Membrane
Filter Class:
Micron Filtration
filtration area:
0.65m2(10'')
support layer,cage of the filter:
PP
filter diameter:
69mm(out);33mm(inner)
application:
Liquid Filtration and Critical Filtration
efficiency:
>99.99%
filter length:
10'',20'',30'',40'',5''
certificate:
FDA,2002/72/EC
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Export standard package: 1pc filter cartridge/ 1 polybag/ 1 small carton; 12 or 20 pcs in one big carton.
Packing box can be remake according to customer's requirement.
Port
Shanghai/Ningbo
Lead Time :
3 to 15 days

welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.



Comprehensive presentation

Specifications





PVDF for liquid filtration

PVDF membrane for liquid filtration.

Absolute Rating



Filtration effective is ≥99.99%

Minimum pore size is 0.1um, suitable for critical liquid filtration

Wide Chemical

compatability

Suitable for strong alkaline and acid enviroment



High viscosity liquid

filtration

Resistance to the halogens and oxide

Best choice for critical filtration of high viscosity liquid.

Effective Filtration Area

0.65M2  per 10"

Materials









Filter Media:  PVDF Membrane

PVDF Membrane: Polypropylene

Inner core:    Polypropylene /SUS304

Outer Support: Reinforced Polypropylene Cage

Adapter:       Polypropylene

Cartridge Dimensions

(Nominal)











Outer Diameter: 69mm (2.75")

Inner Diameter: 33mm (1.30")

Length:      10"- 254mm

                20"- 508mm

                30"-762 mm

                40"- 1016mm    * (Length is based on DOE Adapter)

Cartridge Purity





Standard: Clean and flushed with Pyrogen-free water

Rinse: up to 17-18MΩ.cm with a minimum of throughput

Vacuum packing

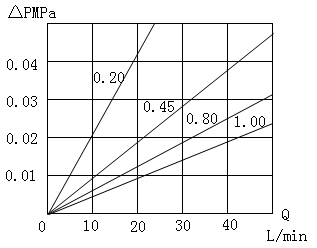

Table 1:Typical air flow

rate (10")


Typical Applications

Bacteria removing of pharmaceuticals;Solvent contains halogens;

High viscosity liquid;Filtration in strong oxidizing enviroment.

Table 2:Liquid Retention

Ratings(um) Test



Cartridge Code≥99.99% (Beta Ratio 10,000)
DHPV0200.2
DHPV0450.45
DHPV0800.8
DHPV1001







Operating Conditions









Normal Operating Temperature:Up to 65℃ (149℉)

Max.Operating Temperature.:90℃ (194℉)at P≤1.0 bar (14psi)

Max. Differential Pressure:

Normal Flow direction  4.2 bar (60 psi) at 25℃ (77℉);

Reverse flow direction 2.1 bar (30psi) at  25℃ (77℉)

PH Value compatibility: 1-13

Sterilization



Steam Sterilization for 30 minutes at 135℃(275℉)

Cumulative Time: 50hours

Materials Safety





Meet the current FDA and 2002/72/EC standard

Endotoxin: <0.25 EU/ml

Extractables: 0.03g/ 10"

Table 3:  100% Integrity

Test


Cartridge CodeBubble Point
DHPV020≥0.6bar (8.7psi)
DHPV045≥0.35bar (5.1psi)
DHPV080≥0.25bar (3.6psi)
DHPV100≥0.20bar (2.9psi)
* Test Liquid:  70%/30% IPA/WATER at 23℃ (73℉)





ORDER INFORMATION



GRADEPRODUCTMICRONADAPTERLENGTH                    O-RING / GASKET
H-CHEMICALDHPV020-0.2umAA- DOE10-10" S-silicone;      N-nitrile
E- ELECTRICAL 045-0.45umCN-226/FIN20-20" E-epdm ;        T-teflon (encaptulated)
P-PHARMACEUTICAL 080-0.8umBN-222/FIN30-30" V-viton
F- FOOD & BEVERAGE 100-1.0umBF-222/ FLAT SEAL40-40"How to Order?- Example
   CF-226/FLAT SEAL05-5"

Pharmaceutical grade; Micron:0.45um;

Length:10"  ADAPTER: DOE; Gakset: Silicone.

Selection Code is: PDHPV045AA10S
