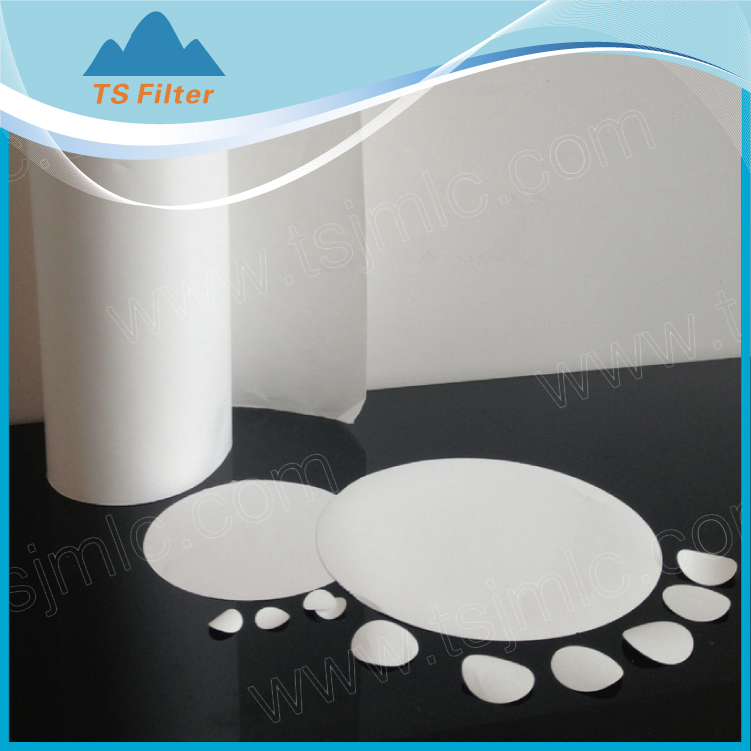

MAIN PRODUCT membrane for liquid filtration PVC waterproof membrane

FOB Reference Price:Get Latest Price
US $5-10 / Pieces | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TS Filter
Model Number:
FM-006
After-sales Service Provided:
No overseas service provided
Filtration efficiency:
>99.9%
Supply Ability
Supply Ability:
12000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Export Standard package ( 1pc/Poly bag/carton)
Port
Shanghai
Lead Time :
around 3-20 days

welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.



Comprehensive presentation

Specifications



Mixed cellulose membrane









Features







Hydrophilic, no prewetting

High flow rates and thermal stability

Low protein adsorption

Low protein adsorption

Application

Widely used in analytical and laboratory filtration

Polytetrafluoroethylene

(PTFE) Membrane















Features







Permanently hydrophobic

Excellent chemical compatiblity

High temperature resistant

Broad pHPore size:

0.10um - 3.00um-range of pH 2-14

Application



Air/gas sterile filtration

Aggressive chemicals, reagents and solvents

bacterial removing



Technical Specification



Membrane NameNylonPES
Pore Size (um)0.20 0.45 0.65 0.20 0.45 0.65
Buble Point (Mpa)0.30 0.20 0.15 0.33 0.22 0.18
pH Value6 - 132 - 14
Water Flow Rate
mL/cm2/min
(ΔP=1.0bar)
WaterWater
23℃23℃
>7>20>50>20>40>75
PVDFCN-CAPTFE
0.20 0.45 0.80 0.20 0.45 0.65 0.10 0.20 0.45
0.09 0.06 0.04 0.30 0.20 0.15 0.15 0.10 0.07
1 - 144 - 81 - 14
EthanolWaterAir Flow Rate
23℃23℃m3/m2„/h
>7>18>45>10>25>55>2>4>6
Sterilizationby autoclaving (121 ℃ at 1 bar) or with ethylene oxide.



ORDER INFORMATION

PRODUCTMembranePore SizeDiameter
MFPN - Nylon010 - 0.10 um013 - 13mm
PS  -  PES020 - 0.20 um025 - 25mm
PV - PVDF045 - 0.45 um047 - 47mm
PF - PTFE065 - 0.65 um090 - 90mm
CNCA - CN-CA080 - 0.80 um142 - 142mm
 100 - 1.00 um293 - 293mm
Package
25G  -25 pcs in a case with paper separated
50N  -50 pcs in a case without paper separated
How to order ?-Example
Membrane: Nylon, Pore Size: 0.20 um, Diameter: 47mm
Package: 25pcs in a case with paper separated
Selection code is: MFPN02004725G



Product range    Click below to choose your desired product categories



pleated filter cartridgeMetal filter cartridgeOther filter cartridge Filter Housing
PN filter cartridge seriesTitanium alloy sintered filterSmall Filter cartridgeGas Filter housings
PES filter cartridge seriespleated stainless steel filterZP filter/ single piece filterLiquid Filter housings
PTFE filter cartridge seriesstainless steel sintered filterHigh flow cartridgeBag Filter housings
PVDF filter cartridge series String Wound filterTitanium filter housing
PP filter cartridge series Melt-blown Filterfilter flask
GF filter cartridge series Activated carbon block filterPlate filter
  mesh filter cartridge
Filter MembranesFilter clothCapsule Filter
Nylon MembranePolyester fiber filter cloth
PES MembranePolyamide fiber filter cloth
PVDF MembranePolypropylene fiber filter cloth
CN-CA membraneFilter bag
