hydrophobic membrane PTFE filter for beer sterile gas filtration

FOB Reference Price:Get Latest Price
US $3-6 / Pieces | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TS Filter
Model Number:
PTFE
Structure:
PTFE filter
Filter Type 1:
0.22 micron air filter
Filter Type 2:
gas filter cartridge
Material of Membrane:
Hydrophobic PTFE
Filter Length:
10/20/30/40Inch
Filter Diameter:
69mm(Out);33mm(Inner)
Cage:
Polypropylene
Application1:
air and gas filtration
Application2:
beer filter
Product type:
bacterial air vent filter
Supply Ability
Supply Ability:
500000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Export Standard package ( 1pc/Poly bag/carton)
Port
Shanghai
Lead Time :
3-7 working day

welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.

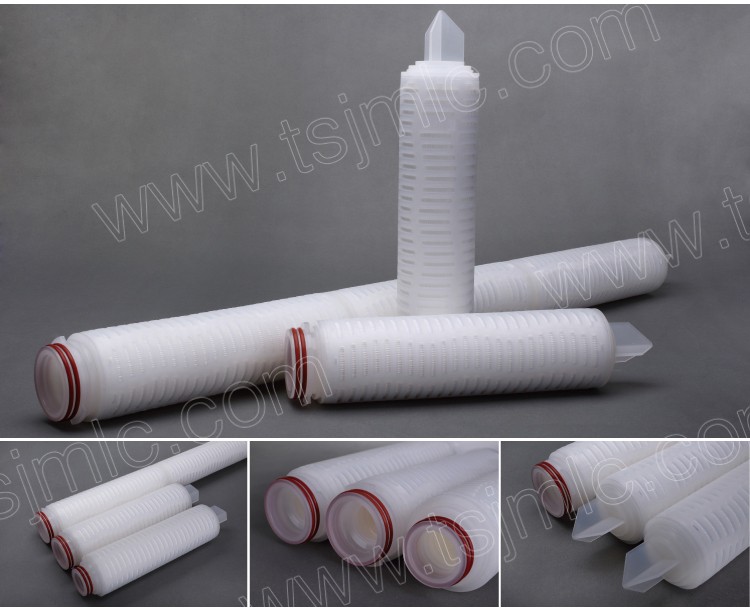

         hydrophobic membrane PTFE filter for beer sterile gas filtration

Comprehensive presentation

-01

Specifications



Features











Resistant to Strong alkali, strong acid

No adhesives

High purity water flushing, no fiber shedding

Resistant to high temperature, ozone

Lyase sterile filtration

100% integrity test

Material of

Construction







Filter Media:Import hydrophobic PTFE membrane

Support layer/drainage layer: Polypropylene

Cage/Endcap:           Polypropylene

Core:                       Polypropylene/Stainless steel

Dimension







Outer diameter:        Φ68,Φ69mm

Inner diameter:        Φ33mm

Filter area:               5~40in

Core:                       0.65m2/10in

Operation Conditions









PH range:                1~14

Normal working temperature:   ≤65℃

Max working temperature:      90℃

Max pressure drop:            0.42Mpa/25℃       0.10Mpa/90℃

Sterilization: Steam Sterilization for 30 minutes at 121±2 ℃,

                    autoclave 30minutes optional

Extractables



Endotoxin:                    <0.25EU/ml

Extractables:                 <0.03g/ 10"

Typical water flow

rate (10")


Typical applications











Lyase sterile filtration

High temperature DI water filtration

Corrosive liquid sterile filtration

Medical solution sterile filtration

Organic solutions sterile filtration

Mineral water, purified water,ozone,strong oxidizing liquid filtration



Ordering information

GRADEPRODUCTMICRONADAPTERLENGTH                    O-RING / GASKET
P-PHARMACEUTICALIPF010-0.1umAA- DOE10-10" S-silicone;      N-nitrile
F- FOOD & BEVERAGE 020-0.2umCN-226/FIN20-20" E-epdm ;        T-teflon (encaptulated)
  045-0.45umBN-222/FIN30-30" V-viton
   BF-222/ FLAT SEAL40-40"How to Order?- Example
   CF-226/FLAT SEAL05-5"

Pharmaceutical grade; Micron:0.45um;

Length:10"

ADAPTER: DOE; Gakset: Silicone.                                                                                                   Selection Code is: PIPF045AA10S

   EN-222 three locking  ears /FinOther-XX
