Advanced VCO filter machine with PP membrane filter cartridge , Replace plate and frame filter

FOB Reference Price:Get Latest Price
US $1-100 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TS Filter
Model Number:
stainless steel cartridge filter housing
Filter Material:
SS304, SS316L
Round:
1, 3, 5, 8,......100
Length:
10/20/30/40Inch
Inlet and outlet:
Chain clamp
Operating Pressure:
6.0-10.0bar
Certificate:
FDA;SGS,etc.
Type 1:
Coconut oil filter
Type 2:
VCO filter machine
Structure:
pp filter cartridge
Application:
VCO
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Stainless Steel Water Filter Housing in Wooden/MDF panel carton
Port
Customized
Lead Time :
3-7 working days

welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.

               Virgin coconut oil cartridge filter housing machine

Product Description

 This series is special for coconut oil industry .



We specialized  in coconut oil etc industry for more than 17year ,with rich fitlration experience .

Welcome to inquiry more professional plan .





Sales engineer : Nina



Email: lyy#tsjmlc.com

Skype: andrea.liu54

Whatsapp / Mobile:+86 18356516590



Comprehensive presentation

Specifications



Complete Stainless Steel Construction



Reduces bacterial/particle adhesion and no dead

space

Excellent corrosion resistance

Easy To Install/Easy to Clean



Easy To Install Design With Sanitary Connections,

Easy to Clean

Requires minimum floor space and quickly

dismantles for easy cleaning

Housings Accommodate





Suitable for small to large batch sizes and flow

rates

High pressure & high temperature designs are

available

Clean-in-Place (CIP) /Steam-in-Place (SIP) Design

Typical Applications



Ideal filtration equipment for food&beverage,

pharmaceutical, biotechnology,

chemical and other industries

Technical Specification







Designed Pressure:      7.2bar(104psi)with in

30mins.

Max.operating pressure: 6.0bar(87psi)

6.0bar(87psi):          Electro polished, Ra≤0.2um

Designed flow rate:     0.2-100 t/h

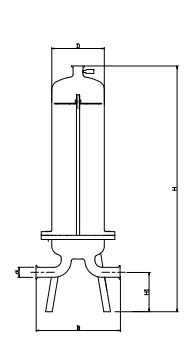

CartridgesBody Closure Dimensions(mm)
Nos.Lengthd
(outlet/inlet)
DBH1H
15"Ferrule clamp1inch102180120570
10"690
20"940
30"1190
310"Stud bolts1 1/4 inch184240180720
20"980
30"1210
510"Stud bolts1.5 inch219280200130
20"990
30"1220
40"1460
720"Stud bolts1 3/4 inch2734202101060
30"1290
40"1530
920"Stud bolts2 inch3254602101080
30"1310
40"1550
1220"Stud bolts2 1/4 inch3504802401150
30"1380
40"1620
1820"Stud bolts3 inch4005002601160
30"1390
40"1630
2120"Stud bolts3.5 inch4506002801190
30"1420
40"1660



ORDER INFORMATION

PRODUCTMATERIALCARTRIDGE NOS.ADAPTERLENGTH

 How to Order?-

Example

BJH304-SUS30401 - SingleAA-DOE10" - 10Material: SUS304
316-SUS316L03 - ThreeCN-226/FIN20" - 20Cartridge Nos.: Single
 05 - FiveBN-222/FIN30" - 30Cartridge adapter:DOE
 07 - SevenAF-220/FLAT SEAL40" - 40Cartridge length: 10"
 09 - NineBF-222/FLAT SEAL5" - 05
 10 - TenCF-226/FLAT SEALOther - XX

Selection Code is:

BJH30401AA10

 12 - Twelve
 18 - Eighteen
 21 - Twenty One
