pharmceutical grade 10 " 0.1 um Hydrophilic PTFE filter cartridge for water

FOB Reference Price:Get Latest Price
$20.00 - $40.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
IHPF ( Hydrophilic PTFE )
filter media:
hydrophilic PTFE membrane
10 "
0.1 micron
inner diameter:
micron size:
0.2um for bacterical removing
end cap:
Filtration area:
Water Processing Line
Supply Ability
Supply Ability:
500 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Export Standard package ( 1pc/Poly bag/carton)
Lead Time :
3-7 working day

pharmceutical grade 10 " 0.1 um  Hydrophilic PTFE filter cartridge for water


Product Description


These PTFE filters are made of hydrophilic polytetrafluoroethylene(PTFE) membrane with excellent retention characteristics, flow rates.


The filters are particularly suited for critical applications in extreme operating conditions, as strong alkaline and acid enviroment, high temperature(up to 90 degree centigrade).










Resistant to Strong alkali, strong acid

No adhesives

High purity water flushing, no fiber shedding

Resistant to high temperature, ozone

Lyase sterile filtration

100% integrity test

Material of





Filter Media:Import hydrophilic PTFE membrane

Support layer/drainage layer: Polypropylene

Cage/Endcap:           Polypropylene

Core:                       Polypropylene/Stainless steel





Outer diameter:        Φ68,Φ69mm

Inner diameter:        Φ33mm

Filter area:               5~40in

Core:                       0.65m2/10in

Operation Conditions





PH range:                1~14

Normal working temperature:   ≤65℃

Max working temperature:      90℃

Max pressure drop:            0.42Mpa/25℃       0.10Mpa/90℃

Sterilization: Steam Sterilization for 30 minutes at 121±2 ℃,

                    autoclave 30minutes optional



Endotoxin:                    <0.25EU/ml

Extractables:                 <0.03g/ 10"

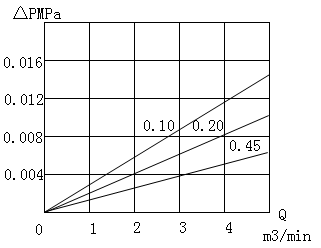

Typical water flow

rate (10")


Typical applications






Lyase sterile filtration

High temperature DI water filtration

Corrosive liquid sterile filtration

Medical solution sterile filtration

Organic solutions sterile filtration

Mineral water, purified water,ozone,strong oxidizing liquid filtration


Ordering information

P-PHARMACEUTICALIPF010-0.1umAA- DOE10-10" S-silicone;      N-nitrile
F- FOOD & BEVERAGE 020-0.2umCN-226/FIN20-20" E-epdm ;        T-teflon (encaptulated)
  045-0.45umBN-222/FIN30-30" V-viton
   BF-222/ FLAT SEAL40-40"How to Order?- Example
   CF-226/FLAT SEAL05-5"

Pharmaceutical grade; Micron:0.45um;


ADAPTER: DOE; Gakset: Silicone.                                                                                                   Selection Code is: PIPF045AA10S

   EN-222 three locking  ears /FinOther-XX


Product range    Click below to choose your desired product categories


pleated filter cartridgeMetal filter cartridgeOther filter cartridge Filter Housing
PN filter cartridge seriesTitanium alloy sintered filterSmall Filter cartridgeGas Filter housings
PES filter cartridge seriespleated stainless steel filterZP filter/ single piece filterLiquid Filter housings
PTFE filter cartridge seriesstainless steel sintered filterHigh flow cartridgeBag Filter housings
PVDF filter cartridge series String Wound filterTitanium filter housing
PP filter cartridge series Melt-blown Filterfilter flask
GF filter cartridge series Activated carbon block filterPlate filter
  mesh filter cartridge
Filter MembranesFilter clothCapsule Filter
Nylon MembranePolyester fiber filter cloth
PES MembranePolyamide fiber filter cloth
PVDF MembranePolypropylene fiber filter cloth
CN-CA membraneFilter bag


About us



Our service

1,24-hour Response
We responds any request from our clients within 24 hours, saving your time and labor.

2,Supporting System
The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.

3,Free Training
We provide free training to all of our clients and distributors. The training will give you ample knowledge of our product, and make it easy for your work.

4,Free Storage Area
We are providing free storage area to our client,to achieve mix loading purposes.




1 How can we get the quotation of flter cartridges
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....

2What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.

3How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment

contact us

 Sales Enginner : Nina

Whats app:+86 18356516590



Welcome to inquiry more detail .
