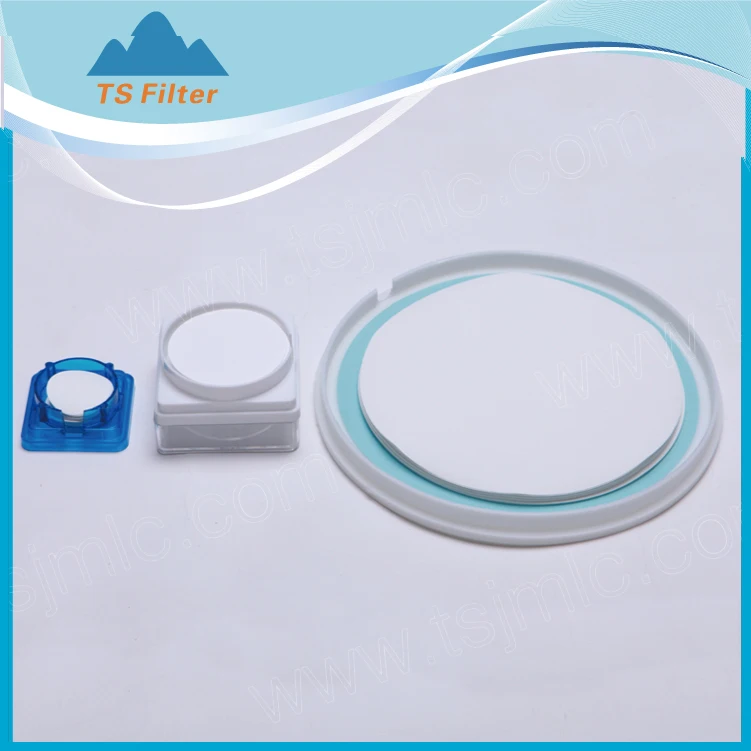

PVDF Micro Membrane Used For Water Filter

FOB Reference Price:Get Latest Price
US $1-3 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TS Filter
Model Number:
RF
Product type:
PVDF membrane
Diameter:
13mm/25mm/47mm/90mm/142mm/293mm
Pore Size:
0.10-3.00 um
Filter Media:
PP/PES/PVDF/PTFE
Application1:
Sterile Filtration for gas/air, chemical organic solvents, etc
Supply Ability
Supply Ability:
1000 Case/Cases per Month
Packaging & Delivery
Packaging Details
plastic case, then put into carton
Port
Shanghai / Hangzhou
Lead Time :
5 working days

welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.



Comprehensive presentation

Specifications



Nylon Membrane











Features







Natural hydrophilic

High non-specific adsorption

Chemical resistant to alkaline solutions and

organic solvents

Pore size: 0.10um - 3.00um

Application



Particles removing filtration of water, aqueous

solutions and solvents

Particularly suitable for alkaline solutions and organic solvents.

Polyethersulfone(PES)

Membrane















Features











Excellent throughput

Natural hydrophilic

Wide chemical compatiblity

Broad pH-range of pH 2-14

Low protein adsorption

Pore size: 0.10um - 1.20um

Application



Sterile filtration for pharmaceutical and beverage

industries laboratory filtration

Buffer filtration, tissue culture media filtration,etc

Polyvinylidene fluoride

(PVDF) Membrane













Features









Natural hydrophobic

Excellent temperature resistant

Wide chemical compatiblity

Low protein adsorption

Pore size: 0.20um - 3.00um

Application



Sterile filtration for gas/air, chemical

organic solvents,etc

Ideal for sterile manufacture of active pharmaceutical

ingredients (API)

Mixed cellulose membrane









Features







Hydrophilic, no prewetting

High flow rates and thermal stability

Low protein adsorption

Low protein adsorption

Application

Widely used in analytical and laboratory filtration

Polytetrafluoroethylene

(PTFE) Membrane



















Features







Permanently hydrophobic

Excellent chemical compatiblity

High temperature resistant

Broad pHPore size:

0.10um - 3.00um-range of pH 2-14

Application



Air/gas sterile filtration

Aggressive chemicals, reagents and solvents

bacterial removing



Technical Specification



Membrane NameNylonPES
Pore Size (um)0.20 0.45 0.65 0.20 0.45 0.65
Buble Point (Mpa)0.30 0.20 0.15 0.33 0.22 0.18
pH Value6 - 132 - 14
Water Flow Rate
mL/cm2/min
(ΔP=1.0bar)
WaterWater
23℃23℃
>7>20>50>20>40>75
PVDFCN-CAPTFE
0.20 0.45 0.80 0.20 0.45 0.65 0.10 0.20 0.45
0.09 0.06 0.04 0.30 0.20 0.15 0.15 0.10 0.07
1 - 144 - 81 - 14
EthanolWaterAir Flow Rate
23℃23℃m3/m2„/h
>7>18>45>10>25>55>2>4>6
Sterilizationby autoclaving (121 ℃ at 1 bar) or with ethylene oxide.



ORDER INFORMATION

PRODUCTMembranePore SizeDiameter
MFPN - Nylon010 - 0.10 um013 - 13mm
PS  -  PES020 - 0.20 um025 - 25mm
PV - PVDF045 - 0.45 um047 - 47mm
PF - PTFE065 - 0.65 um090 - 90mm
CNCA - CN-CA080 - 0.80 um142 - 142mm
 100 - 1.00 um293 - 293mm



Package
25G  -25 pcs in a case with paper separated
50N  -50 pcs in a case without paper separated
How to order ?-Example
Membrane: Nylon, Pore Size: 0.20 um, Diameter: 47mm
Package: 25pcs in a case with paper separated
Selection code is: MFPN02004725G



Product range    Click below to choose your desired product categories



pleated filter cartridgeMetal filter cartridgeOther filter cartridge Filter Housing
PN filter cartridge seriesTitanium alloy sintered filterSmall Filter cartridgeGas Filter housings
PES filter cartridge seriespleated stainless steel filterZP filter/ single piece filterLiquid Filter housings
PTFE filter cartridge seriesstainless steel sintered filterHigh flow cartridgeBag Filter housings
PVDF filter cartridge series String Wound filterTitanium filter housing
PP filter cartridge series Melt-blown Filterfilter flask
GF filter cartridge series Activated carbon block filterPlate filter
  mesh filter cartridge
Filter MembranesFilter clothCapsule Filter
Nylon MembranePolyester fiber filter cloth
PES MembranePolyamide fiber filter cloth
PVDF MembranePolypropylene fiber filter cloth
CN-CA membraneFilter bag






About us








Our service

1,24-hour Response
We responds any request from our clients within 24 hours, saving your time and labor.

2,Supporting System
The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.

3,Free Training
We provide free training to all of our clients and distributors. The training will give you ample knowledge of our product, and make it easy for your work.

4,Free Storage Area
We are providing free storage area to our client,to achieve mix loading purposes.





FAQ

1 How can we get the quotation of flter cartridges
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....

2What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.

3How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment
Whats app:
EMail:

Best wishes!



welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.
