high flow filter cartridge Micron cartridge filter Ro cartridge filter

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    US $1.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Efficiency:
99.99%
Construction:
Cartridge Filter
Filtration Grade:
Micron filtration
Medium Material:
PES
Porosity:
0.1um
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TS filter
Model Number:
LF
Dimension(L*W*H):
60*24*33
Weight:
Light Weight
Certification:
SGS
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Diameter::
83mm , 130 mm
Filtration Area::
1.0 m2, 2.0 m2
Micron:
0.1, 0.22, 0.45, 1.0, 5.0, etc
Application::
Water Filtration
Application 2:
DI water flushing
Efficiency::
>99.99%
O rings::
EPDM, Viton, etc
Filter Media::
PP, PES
Type:
High flow cartridge filter
Certificate::
SGS, ISO9001, etc
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
1pc / 1 polybag/ 1 small carton; 12 or 20 pcs in one big carton
Port
Shanghai or ning bo
Lead Time :
3-7 working day



high flow filter cartridge  Micron cartridge filter Ro cartridge filter



Product Description



These filters can handle flow rates in excess of 200 L/min, thereby reducing the system footprint and change-out costs. They are available in four filter media types; polypropylene, highly asymmetric hydrophilic polysulfone, hydrophilic polyethersulfone and PTFE, providing a choice of removal ratings from 0.1 µm to 40 µm.

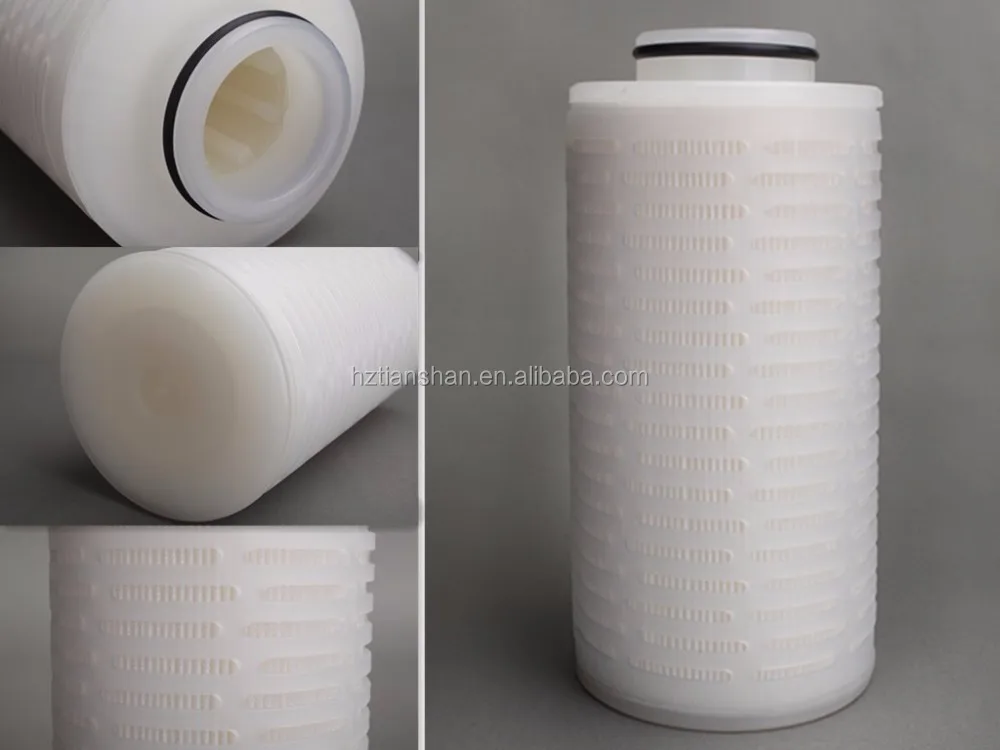

130 mm Diameter 10 Inch High Filter Area Pleated Cartridge, Pall EPK Filter Repalcement





Features and Benefits



1. Higher water flow rate and longer service life;



2. Large filtration area, pleated cartridge, reduce the numbers of filters required;



3. Excellent compatibility with various process liquids;



4. Single open end filter, easy to change-out;



Applications



> Wet cleaning process in Thin Film Transistor Liquid Crystal Display (TFT LCD) manufacturing;



> Semiconductor or other electronic industrial processes water purification;



> Large volume of clarification and sterile filtration in Food&beverage industry;



> High pressure and flow rate water filtration in pharmaceutical and chemical industry;



Specifications



Materials Of ConstructionFilter Media:Polypropylene(PP) or Polyethersulfone(PES) Membrane
Support Layers:Polypropylene
Micron Rating:PP : 0.2, 0.5, 1 , 2, 4.5, 1 0, 20, 30
PES : 0.05, 0.1 , 0.2, 0.45, 1
Inner core:Polypropylene
Outer Cage, End caps:Polypropylene
Seal Method:Thermal Bonded, No Adhesives
O-rings/gaskets: Silicone, EPDM, Vition
Cartridge DimensionsOuter Diameter83mm, 131mm
Inner Diameter40mm, 63mm
Length(based on DOE end caps)10"- 254mm
Filtration Area(m2)1.0 m, 2.0 m2
Operating ConditionsNormal Operating Temperature: Up to 60℃ (140℉)
Max.Operating Temperature: 80℃ (172℉) at P≤1.0 bar (14psi)
Max. Differential Pressure
Normal Flow direction:4.2 bar (60 psi) at 25℃ (77℉)
Reverse flow direction:2.1 bar (30psi) at  25℃ (77℉).
PH Value compatibility: 1-13

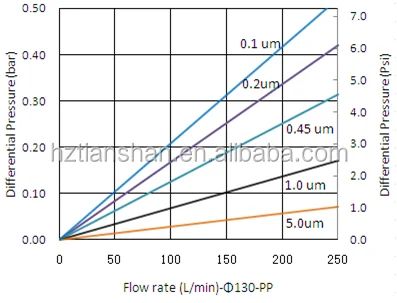

Typical Water Flow Rate (10")

        130 mm Diameter 10 Inch High Filter Area Pleated Cartridge, Pall EPK Filter Repalcement

        130 mm Diameter 10 Inch High Filter Area Pleated Cartridge, Pall EPK Filter Repalcement



Cartridge SafetyEndotoxin:<0.25 EU/ml
Extractables:0.03g / 10"
