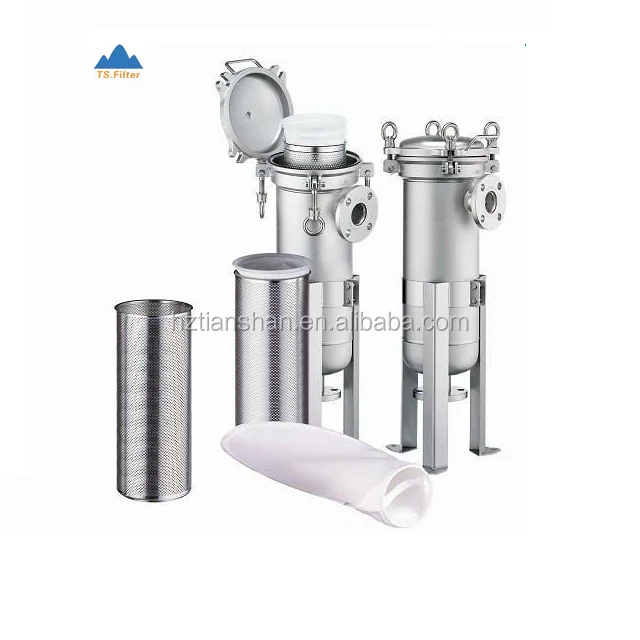

High flow rate filter bag filter housing for wide range of liquid flow capacities in food & beverage and chemical filtration

FOB Reference Price:Get Latest Price
US $120-1,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TS Filter
Model Number:
Bag filter housing
Filter Type:
Bag filter housing
Material:
SUS304, SUS316L
Closure:
DIN Standard
Size:
10", 20", 30", 40" long filter cartridges
Cartridges:
Single cartridge, multi-cartridges
Certificate:
ISO9001, SGS, CE, FDA
Customized:
Customized design available
Flow rate:
Up to 2000 m3 /hr & more
Options:
Gauges and valves
Application:
Food & beverage and chemical filtration
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packing by standard export packing for Bag filter housing
Port
Shanghai or Ningbo

welcome to>>



High flow rate filter bag filter housing for wide range of liquid flow capacities in food & beverage and chemical filtration



Comprehensive presentation
Specifications



Complete Stainless Steel Construction



Reduces bacterial/particle adhesion and no dead

space

Excellent corrosion resistance

Easy To Install/Easy to Clean



Easy To Install Design With Sanitary Connections,

Easy to Clean

Requires minimum floor space and quickly

dismantles for easy cleaning

Housings Accommodate





Suitable for small to large batch sizes and flow

rates

High pressure & high temperature designs are

available

Clean-in-Place (CIP) /Steam-in-Place (SIP) Design

Typical Applications



Ideal filtration equipment for food&beverage,

pharmaceutical, biotechnology,

chemical and other industries

Technical Specification







Designed Pressure:      7.2bar(104psi)with in

30mins.

Max.operating pressure: 6.0bar(87psi)

6.0bar(87psi):          Electro polished, Ra≤0.2um

Designed flow rate:     0.2-100 t/h




Bag filter housingcoconut oil filter housing.pngwater filter bag housing.png

CartridgesBody Closure Dimensions(mm)
Nos.Lengthd
(outlet/inlet)
DBH1H
15"Ferrule clamp1inch102180120570
10"690
20"940
30"1190
310"Stud bolts1 1/4 inch184240180720
20"980
30"1210
510"Stud bolts1.5 inch219280200130
20"990
30"1220
40"1460
720"Stud bolts1 3/4 inch2734202101060
30"1290
40"1530
920"Stud bolts2 inch3254602101080
30"1310
40"1550
1220"Stud bolts2 1/4 inch3504802401150
30"1380
40"1620
1820"Stud bolts3 inch4005002601160
30"1390
40"1630
2120"Stud bolts3.5 inch4506002801190
30"1420
40"1660



ORDER INFORMATION

PRODUCTMATERIALCARTRIDGE NOS.ADAPTERLENGTH

 How to Order?-

Example

BJH304-SUS30401 - SingleAA-DOE10" - 10Material: SUS304
316-SUS316L03 - ThreeCN-226/FIN20" - 20Cartridge Nos.: Single
 05 - FiveBN-222/FIN30" - 30Cartridge adapter:DOE
 07 - SevenAF-220/FLAT SEAL40" - 40Cartridge length: 10"
 09 - NineBF-222/FLAT SEAL5" - 05
 10 - TenCF-226/FLAT SEALOther - XX

Selection Code is:

BJH30401AA10

 12 - Twelve
 18 - Eighteen
 21 - Twenty One
